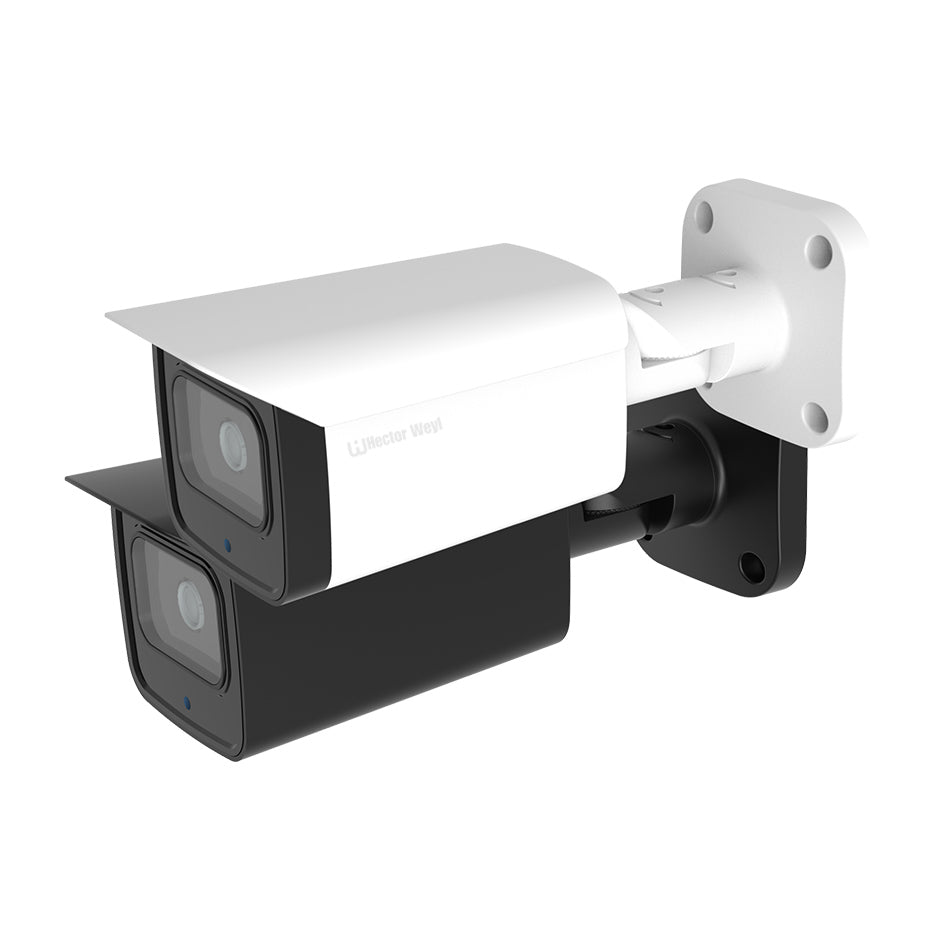

HW-IPC-F2449T-IL-AS-PV 4MP Advanced Dual Light Fixed-Focal Bullet IntelliSight AI R&B Network Camera

Name: HW-IPC-F2449T-IL-AS-PV 4MP Advanced Dual Light Fixed-Focal Bullet IntelliSight AI R&B Network Camera
Brand: Hectorweyl
SKU: HW-IPC-F2449T-IL-AS-PV
Price: 134.00 USD
Availability: InStock

$134.00

Product variants

Need help?

Pairs well with

Not Sure What to Choose? Start with the Right Series.

HW-IPC-F2449T-IL-AS-PV 4MP Advanced Dual Light Fixed-Focal Bullet IntelliSight AI R&B Network Camera

$134.00

Product details

Description

HW-IPC-F2449T-IL-AS-PV 4MP Advanced Dual Light Fixed-Focal Bullet IntelliSight AI R&B Network Camera Overview

With advanced dual hybrid light technology, simple installation, and intelligent operation, Hector Weyl Advanced Dual Hybrid Light Smart Entry 2 Series camera suits small-to-medium scenes like homes, shops, and enterprises, offering high-quality full-color imaging day and night.

• 1/2.8"Progressive Scan CMOS;
• 4MP(1~25/30fps);
• H.265+ codec, high compression rate, ultra-low bit rate.
• Built-in efficient IR illuminator and White light, and the max illumination distance is 50 m.
• 2.8mm fixed lens (3.6mm optional) ;
• SMART H.264+/H.265+,flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking applicable to various monitoring scenes.
• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access.
• Support Red and Blue LED Alarm, Sound Alarm, Arm and Disarm;
• Support Built-in Mic;
• 12 VDC/PoE power supply.
• IP67 protection.
• AMD, Perimeter Protection

Camera
Image Sensor	1/2.8” CMOS
Max. Resolution	4MP, 2688 (H) × 1520 (V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.006Lux(Illuminator off); 0Lux (Illuminator on)
S/N Ratio	> 56 dB
Illumination Distance	Warm light distance 50 m, IR distance 50m
Illuminator Control	Auto; Manual
Lens
Lens Type	Fixed-Focal
Focal Length	2.8mm/3.6mm
Max. Aperture	F1.6
Field of View	2.8mm Horizontal: 111°,Vertical:59°, Diagonal:134° 3.6mm Horizontal: 90°,Vertical:48°, Diagonal: 108°
Iris Type	Auto
Intelligence
Smart Motion Detection	Yes
Perimeter Protection	Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor)
Face Detection	NA
Object Detection	NA
People Counting	NA
Heat Map	NA
AI Search	Work together with NVR
Video
Compression	H.264H; H.264M; H.264B; H.265
Smart Compression	H.264H+; H.264M+; H.264B+; H.265+

Video Frame Rate	Main Stream: 4MP (1 fps–25/30 fps)
	Sub Stream: D1 (1 fps–25/30 fps)
	Third Stream: 720P (1 fps–25/30 fps)
Stream Capability	3 Streams
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 Kbps–20480 Kbps
Video Bit Rate	H.265: 3 Kbps–20480 Kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
White Balance	Yes
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 Areas, rectangular)
Image Rotation	180°
Mirror	Yes
Privacy Masking	4 Areas
Audio
Built-in Mic	Yes
Built-in Speaker	Yes
Alarm
Arming/Disarming	Yes
Sound Alarm	Yes
Light Alarm	Yes
Alarm Event	Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Network Protocol	TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
Interoperability	ONVIF; CGI; P2P(Optional)
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; Micro SD card (support max. 256 G/FAT32)
Browser	IE: IE8 and later; Chrome; Firefox

Management Software	PC Software(SVMS)
Mobile Client	IOS; Android
Port
Audio Input	NA
Audio Output	NA
Alarm Input	NA
Alarm Output	NA
Power
Power Supply	12V DC (±30%)/PoE (802.3af)
Power Consumption	Basic: 2.8 W; Max. 6.5W
Environment
Operating Conditions	–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67
Structure
Casing	Metal
Dimensions	244 mm × 77mm × 76mm
Net Weight	760g

Download

HW-IPC-F2449T-IL-AS-PV DATA SHEET

Network Cameras Product Manual

This document details the fucntions of the product and its configuration. Please read the
content carefufully before using the product and keep this document safely for future reference

Click to Download

FAQs

Please read our FAQs page to find out more.

Q: What are the main features of Hector Weyl's surveillance cameras?

A: Our surveillance cameras offer high-resolution video capture,night vision capabilities,and advanced motion detection. They are designed for 24/7 operationand are equipped with weather-resistant housing to ensure reliability in various environments.

Q: How do I set up and configure the NVR for my surveillance system?

A: Setting up our NVR is straightforward. Connect the NVR to your network, power it on, and use the provided software to add your cameras.Configure the recording settings, motion detection, and notifications according to your preferences. For detailed steps,refer to the user manual

Q: What is the range of PTZ cameras offered by Hector Weyl?

A: We offer a variety of PTZ cameras with different features such as outdoor and indoor models, varying degrees of zoom, and different monitoring angles. Our PTZ cameras support remote control for pan,tilt,and zoom operations,allowing for flexible and comprehensive surveillance coverage.

Q: How can I troubleshoot common issues with my surveillance system?

A: Common issues can include problems with power supply, incorrect cabling, or software configuration. Ensure that all connections are secure and that the power supply is appropriate for your system.Check for any physical damage to cables or components. If you're facing software-related issues, try resetting the device or updating the firmware. For more specific guidance,consult our troubleshooting guide.

Q: What kind of storage solutions does Hector Weyl recommend for NVR systems?

A: We recommend using surveillance-grade hard drives designed for 24/7 operation, as they can handle the continuous read and write cycles required for recording surveillance footage. Higher capacity drives are suggested for extended recording periods and to store more high-definition video.

Q: How can I ensure the security of my surveillance data?

A: To secure your surveillance data, we recommend using encrypted storage, regularly updating your system's firmware, and setting strong passwords for system access. Additionally,ensure that your NVR and cameras are protected from unauthorized physical access.
