Product details

Description

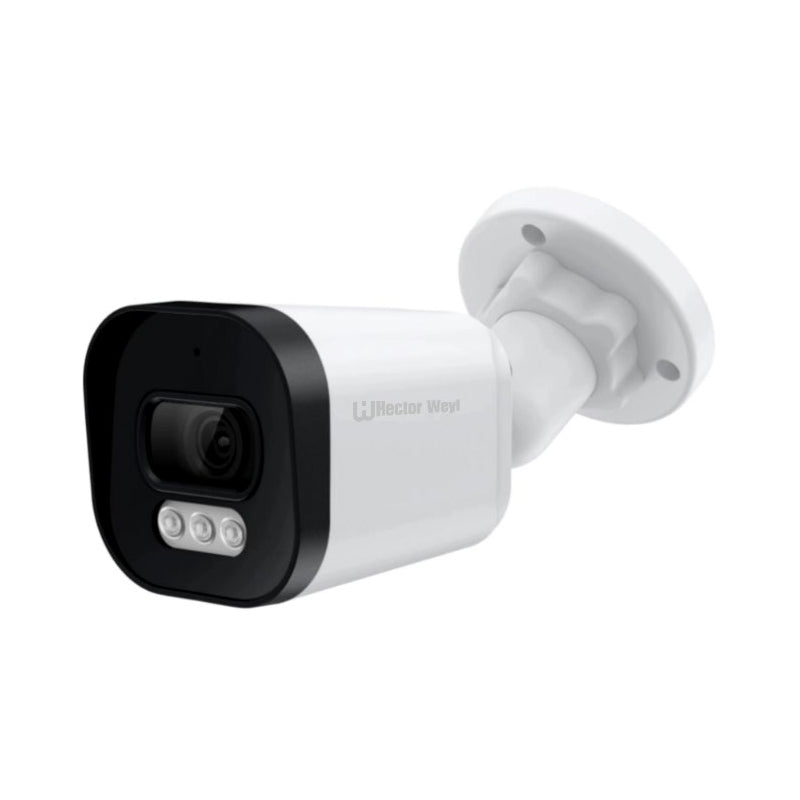

HW-IPC-F1410C-G2 4MP IR Dual Light Fixed-Focal Bullet Network Camera

With features of simple installation, easy operation, and high  performance-cost ratio, Hector Weyl ValueMax series network camera  is applicable to small and medium-sized scenes, such as homes/  residences, small-sized retail stores, and other small andmedium-sized  enterprises.

•    4MP 1/2.8" Cmos image sensor, lowilluminance, high image definition.
•    4MP (2688 ×1520) @20 fps,and supports 2560 × 1440 (2560 ×1440) @25/30 fps.
•    H.265 codec, high compression rate, ultra-low bit rate.
•    Built-in efficient IR illuminatorand White light, and the max, illumination distance is 20 m.
•    ROl,SMART H.264/H.265, flexible coding, applicabletovarious bandwidth and storage environments.
•    Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicabletovarious monitoring scenes.
•    2.8mm fixed lens(3.6mm optional)
•    12 VDC/PoE power supply.
•    IP67 protection.

Camera

Image Sensor

1/2.8” CMOS

Max. Resolution

4MP 2688 (H) × 1520 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto(1/25s ~ 1/1000)

Min. Illumination

0.01 Lux @F2.0

S/N Ratio

> 56 dB

Illumination Distance

IR Light: 20 m, White Light: 20m

Illuminator Control

Auto; Manual

Lens

Lens Type

Fixed-Focal

Focal Length

2.8mm/3.6mm

Max. Aperture

F2.0

Iris Type

Auto

Video

Compression

H.264H; H.264M; H.264B; H.265



Video Frame Rate

Main stream:
2688 × 1520@(1 fps-20 fps)
2560 × 1440@(1 fps-25/30 fps)

Sub stream:
704 × 576@(1 fps-25 fps)
704 × 480@(1 fps-30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 Streams

Bit Rate Control

CBR/VBR



Video Bit Rate

H.264: 1792Kbps~4Mbps

H.265: 1792Kbps~4Mbps

Day/Night

Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Yes

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 Areas, rectangular)

Image Rotation

0°/180°

Mirror

Yes

Privacy Masking

4 Areas

Audio

Built-in Mic

NA (optional)

Alarm

Alarm Event

Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP

Interoperability

ONVIF; CGI

Storage

SD Card (Optional)

Browser

IE: IE8 and later

Management Software

PC Software(SVMS)

Mobile Client

IOS; Android

Power

Power Supply

12V DC (±30%)/PoE (802.3af)

Power Consumption

Max. 3W

Environment

Operating Conditions

–20°C to +60°C /Less than 95% RH

Storage Conditions

–30°C to +60°C

Protection Grade

IP67

Structure

Casing

Metal( pedestal: plastic )

Dimensions

65mm×65mmx155mm

Net Weight

370g

FAQs

Please read our FAQs page to find out more.

Q: What are the main features of Hector Weyl's surveillance cameras?

A: Our surveillance cameras offer high-resolution video capture,night vision capabilities,and advanced motion detection. They are designed for 24/7 operationand are equipped with weather-resistant housing to ensure reliability in various environments.

Q: How do I set up and configure the NVR for my surveillance system?

A: Setting up our NVR is straightforward. Connect the NVR to your network, power it on, and use the provided software to add your cameras.Configure the recording settings, motion detection, and notifications according to your preferences. For detailed steps,refer to the user manual

Q: What is the range of PTZ cameras offered by Hector Weyl?

A: We offer a variety of PTZ cameras with different features such as outdoor and indoor models, varying degrees of zoom, and different monitoring angles. Our PTZ cameras support remote control for pan,tilt,and zoom operations,allowing for flexible and comprehensive surveillance coverage.

Q: How can I troubleshoot common issues with my surveillance system?

A: Common issues can include problems with power supply, incorrect cabling, or software configuration. Ensure that all connections are secure and that the power supply is appropriate for your system.Check for any physical damage to cables or components. If you're facing software-related issues, try resetting the device or updating the firmware. For more specific guidance,consult our troubleshooting guide.

Q: What kind of storage solutions does Hector Weyl recommend for NVR systems?

A: We recommend using surveillance-grade hard drives designed for 24/7 operation, as they can handle the continuous read and write cycles required for recording surveillance footage. Higher capacity drives are suggested for extended recording periods and to store more high-definition video.

Q: How can I ensure the security of my surveillance data?

A: To secure your surveillance data, we recommend using encrypted storage, regularly updating your system's firmware, and setting strong passwords for system access. Additionally,ensure that your NVR and cameras are protected from unauthorized physical access.
