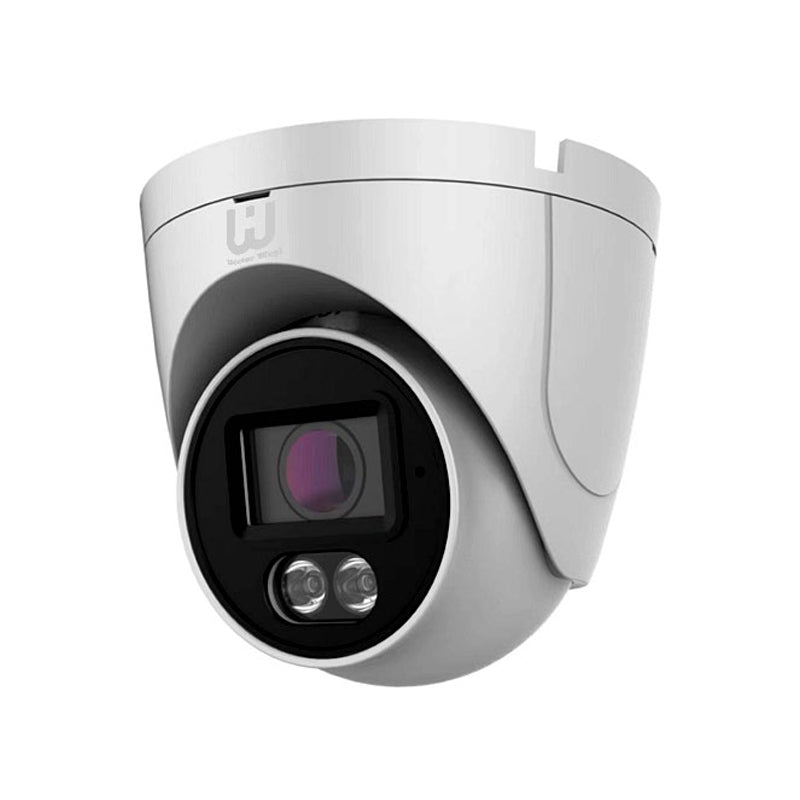

HW-IPC-G1410C-G2 4MP Dual Light Fixed-Focal Eyeball Network Camera
Pairs well with
HW-IPC-G1410C-G2 4MP Dual Light Fixed-Focal Eyeball Network Camera
Product details
Description
HW-IPC-G1410C-G2 4MP Dual Light Fixed-Focal Eyeball Network Camera
With features of simple installation, easy operation, and high performance-cost ratio, Hector Weyl ValueMax series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small andmedium-sized enterprises.
• 4-Mp 1/2.8" CMos image sensor, lowilluminance, high image definition.
• Outputs max. 4MP (2688 ×1520) @20 fps,and supports 2560 ×1440 (2560 ×1440) @25/30 fps., high compression rate, ultra-low bit rate.
• Built-in efficient IR illuminatorand White light, and the max, illumination distance is 20 m.
• ROl,SMART H.264/H.265, flexible coding, applicabletovarious bandwidth and storage environments.
• Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicabletovarious monitoring scenes.
• 2.8mm fixed lens(3.6mm optional)
• 12 VDC/PoE power supply.
• IP67 protection.
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS |
|
Max. Resolution |
4MP 2688 (H) × 1520 (V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto(1/25s ~ 1/1000) |
|
Min. Illumination |
0.01 Lux @F2.0 |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
IR Light: 20 m, White Light: 20m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Fixed-Focal |
|
Focal Length |
2.8mm/3.6mm |
|
Max. Aperture |
F2.0 |
|
Iris Type |
Auto |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
Video Frame Rate |
Main Stream: 2688 × 1520@(1 fps-20 fps) |
|
Sub Stream: 704 × 576@(1 fps-25 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
|
Stream Capability |
2 Streams |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 1792Kbps~4Mbps |
|
H.265: 1792Kbps~4Mbps |
|
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
0°/180° |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
NA (optional) |
|
Alarm |
|
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP |
|
Interoperability |
ONVIF; CGI |
|
Storage |
SD Card (Optional) |
|
Browser |
IE: IE8 and later |
|
Management Software |
PC Software(HSS) |
|
Mobile Client |
IOS; Android |
|
Power |
|
|
Power Supply |
12V DC (±30%)/PoE (802.3af) |
|
Power Consumption |
Max. 3W |
|
Environment |
|
|
Operating Conditions |
–20°C to +60°C /Less than 95% RH |
|
Storage Conditions |
–30°C to +60°C |
|
Protection Grade |
IP67 |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
Φ120mm×120mm |
|
Net Weight |
390g |
Download
FAQs
Please read our FAQs page to find out more.
Q: What are the main features of Hector Weyl's surveillance cameras?
A: Our surveillance cameras offer high-resolution video capture,night vision capabilities,and advanced motion detection. They are designed for 24/7 operationand are equipped with weather-resistant housing to ensure reliability in various environments.
Q: How do I set up and configure the NVR for my surveillance system?
A: Setting up our NVR is straightforward. Connect the NVR to your network, power it on, and use the provided software to add your cameras.Configure the recording settings, motion detection, and notifications according to your preferences. For detailed steps,refer to the user manual
Q: What is the range of PTZ cameras offered by Hector Weyl?
A: We offer a variety of PTZ cameras with different features such as outdoor and indoor models, varying degrees of zoom, and different monitoring angles. Our PTZ cameras support remote control for pan,tilt,and zoom operations,allowing for flexible and comprehensive surveillance coverage.
Q: How can I troubleshoot common issues with my surveillance system?
A: Common issues can include problems with power supply, incorrect cabling, or software configuration. Ensure that all connections are secure and that the power supply is appropriate for your system.Check for any physical damage to cables or components. If you're facing software-related issues, try resetting the device or updating the firmware. For more specific guidance,consult our troubleshooting guide.
Q: What kind of storage solutions does Hector Weyl recommend for NVR systems?
A: We recommend using surveillance-grade hard drives designed for 24/7 operation, as they can handle the continuous read and write cycles required for recording surveillance footage. Higher capacity drives are suggested for extended recording periods and to store more high-definition video.
Q: How can I ensure the security of my surveillance data?
A: To secure your surveillance data, we recommend using encrypted storage, regularly updating your system's firmware, and setting strong passwords for system access. Additionally,ensure that your NVR and cameras are protected from unauthorized physical access.
