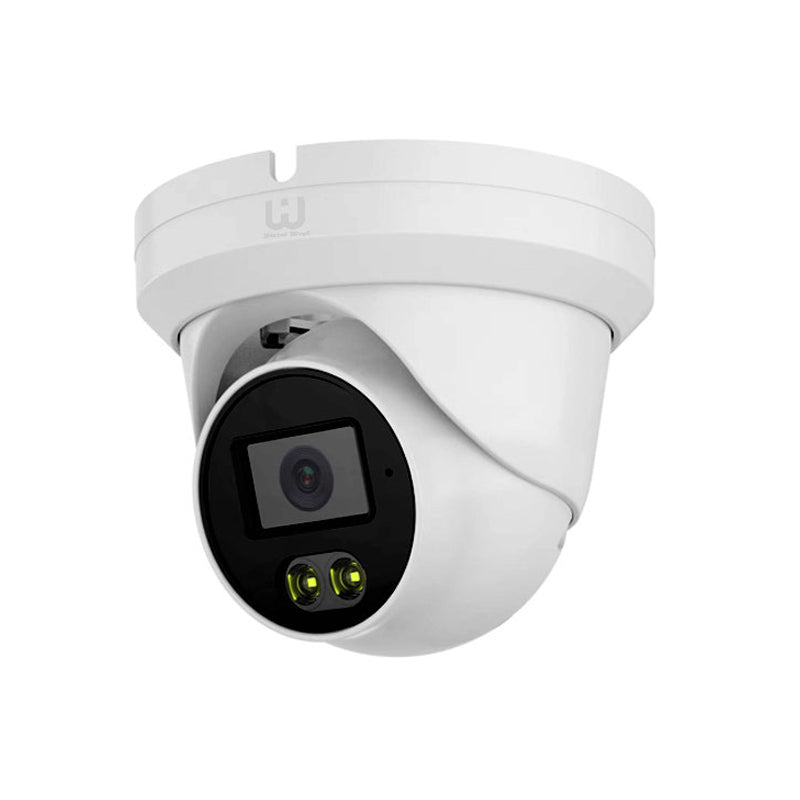

HW-IPC-G2410C-G2-L 4MP Smart Dual Light Fixed-Focal Eyeball Lite AI Network Camera
Pairs well with
HW-IPC-G2410C-G2-L 4MP Smart Dual Light Fixed-Focal Eyeball Lite AI Network Camera
Product details
Description
HW-IPC-G2410C-G2-L 4MP Smart Dual Light Fixed-Focal Eyeball Lite AI Network Camera
Unveiled by Hector Weyl, IntelliSight comprises an array of artificial intelligence products and solutions. These are underpinned by dedicated AI chips and cutting-edge deep learning algorithms, ensuring precise identification of humans and vehicles. This precision empowers users to swiftly respond to specific targets. Leveraging the innovative technologies of Hector Weyl, IntelliSight offers a suite of smart, user-friendly, and comprehensive offerings designed to meet a wide range of needs.
• 1/2.8"Progressive Scan CMOS;
• 4MP(1~25/30fps) ;
• Dual-Stream; H.265/H.264;
• DWDR;
• SD Card;
• 3.6mm Fixed lens(2.8mm optional);
• White Light & IR Light distance:30M;Intrusion,
• Tripwire( Support the Classification of Vehicle, Human );
• AMD;
• DC12V/PoE;
• IP67
• Inner core: Metal; Cover: Plastic
|
Camera |
|
|
Image Sensor |
1/2.7” CMOS |
|
Max. Resolution |
4MP |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.006Lux(Illuminator off); 0Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
IR Light: 30 m, White Light: 20m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Fixed-Focal |
|
Focal Length |
2.8mm/3.6mm |
|
Max. Aperture |
F1.2 |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Smart Motion Detection |
Yes |
|
Perimeter Protection |
Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) |
|
Perimeter Protection |
NA |
|
Face Detection |
NA |
|
Object Detection |
NA |
|
People Counting |
NA |
|
Heat Map |
NA |
|
AI Search |
Work together with NVR |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
Video Frame Rate |
Main Stream: 4MP (1 fps–25/30 fps) |
|
Sub Stream: D1 (1 fps–25/30 fps) |
|
|
Stream Capability |
3 Streams |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 3 Kbps–20480 Kbps |
|
|
H.265: 3 Kbps–20480 Kbps |
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
180° |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
NA (optional) |
|
Alarm |
|
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP |
|
Interoperability |
ONVIF; CGI |
|
Storage |
SD Card (Optional) |
|
Browser |
IE: IE8 and later |
|
Management Software |
PC Software(HSS) |
|
Mobile Client |
IOS; Android |
|
Power |
|
|
Power Supply |
12V DC (±30%)/PoE (802.3af) |
|
Power Consumption |
Max. 3W |
|
Environment |
|
|
Operating Conditions |
–30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|
Storage Conditions |
–40°C to +60°C (–40°F to +140°F) |
|
Protection Grade |
IP67 |
|
Structure |
|
|
Casing |
Inner core: Metal; Cover: Plastic |
|
Dimensions |
Φ110mm×97mm |
|
Net Weight |
430g |
Download
FAQs
Please read our FAQs page to find out more.
Q: What are the main features of Hector Weyl's surveillance cameras?
A: Our surveillance cameras offer high-resolution video capture,night vision capabilities,and advanced motion detection. They are designed for 24/7 operationand are equipped with weather-resistant housing to ensure reliability in various environments.
Q: How do I set up and configure the NVR for my surveillance system?
A: Setting up our NVR is straightforward. Connect the NVR to your network, power it on, and use the provided software to add your cameras.Configure the recording settings, motion detection, and notifications according to your preferences. For detailed steps,refer to the user manual
Q: What is the range of PTZ cameras offered by Hector Weyl?
A: We offer a variety of PTZ cameras with different features such as outdoor and indoor models, varying degrees of zoom, and different monitoring angles. Our PTZ cameras support remote control for pan,tilt,and zoom operations,allowing for flexible and comprehensive surveillance coverage.
Q: How can I troubleshoot common issues with my surveillance system?
A: Common issues can include problems with power supply, incorrect cabling, or software configuration. Ensure that all connections are secure and that the power supply is appropriate for your system.Check for any physical damage to cables or components. If you're facing software-related issues, try resetting the device or updating the firmware. For more specific guidance,consult our troubleshooting guide.
Q: What kind of storage solutions does Hector Weyl recommend for NVR systems?
A: We recommend using surveillance-grade hard drives designed for 24/7 operation, as they can handle the continuous read and write cycles required for recording surveillance footage. Higher capacity drives are suggested for extended recording periods and to store more high-definition video.
Q: How can I ensure the security of my surveillance data?
A: To secure your surveillance data, we recommend using encrypted storage, regularly updating your system's firmware, and setting strong passwords for system access. Additionally,ensure that your NVR and cameras are protected from unauthorized physical access.
