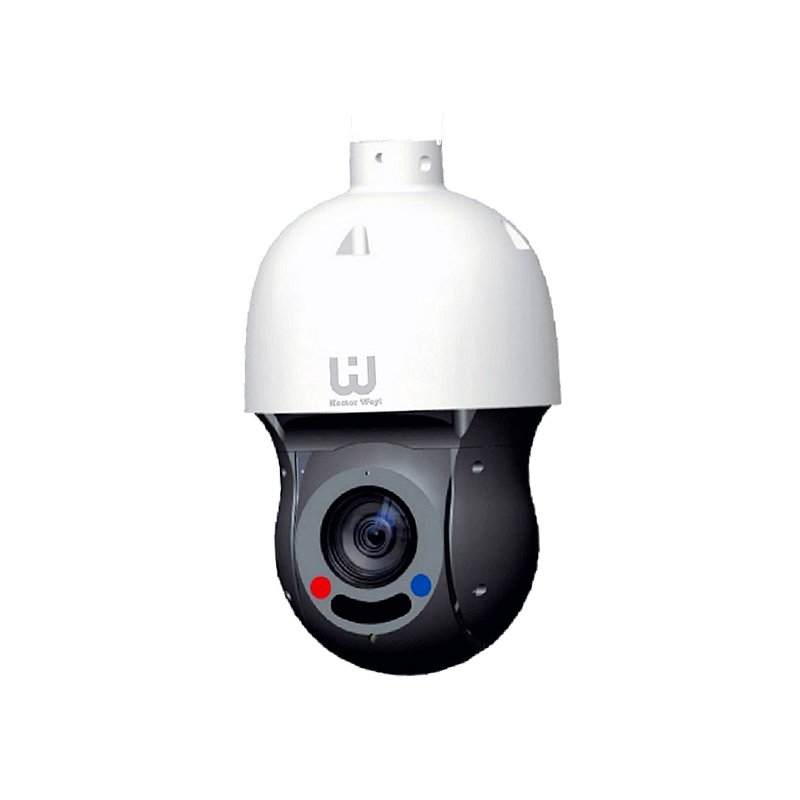

HW-PTZ40220-HFM 2MP 20x Optical Zoom StarVu Warning Lights Network PTZ Camera
Pairs well with
HW-PTZ40220-HFM 2MP 20x Optical Zoom StarVu Warning Lights Network PTZ Camera
Product details
Description
HW-PTZ40220-HFM 2MP 20x Optical Zoom StarVu Warning Lights Network PTZ Camera
- 1/2.8” Progressive Scan 2MP CMOS ;
- 5.5-110mm,20x Optical Zoom;
- StarVu technology;
- Red and blue warning lights;
- Built in Mic;
- IR distance up to 120 m;
- IP66;
|
Camera |
|
|
Image Sensor |
1/2.8” Progressive Scan 2MP CMOS |
|
Minimum Illumination |
Color:0.001 Lux @ (F1.5,AGC ON); B/W:0.0005Lux @ (F1.5,AGC ON) |
|
Shutter |
1/25s to 1/100,000s；Supports delayed shutter |
|
Aperture |
DC drive |
|
Day/Night Switch |
ICR cut filter |
|
Digital zoom |
16x |
|
Lens |
|
|
Focal Length |
5.5-110mm,20x Optical Zoom |
|
Aperture Range |
F1.7-F3.7 |
|
Field of View |
45-3.1°（wide-tele） |
|
Minimum Working Distance |
100mm-1500mm (wide-tele) |
|
Zoom Speed |
Approximately 3s (optical, wide-tele) |
|
Compression Standard |
|
|
Video Compression |
H.265 / H.264 / MJPEG |
|
H.265 Type |
Main Profile |
|
H.264 Type |
BaseLine Profile / Main Profile / High Profile |
|
Video Bitrate |
32 Kbps~16Mbps |
|
Audio Compression |
G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
|
Audio Bitrate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16- 64Kbps(AAC) |
|
Image（Maximum Resolution：1920*1080） |
|
|
Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720) |
|
Third Stream |
50Hz: 25fps (704 x 576); 60Hz: 30fps (704 x 576) |
|
Image Settings |
Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse |
|
BLC |
Support |
|
Exposure Mode |
AE / Aperture Priority / Shutter Priority / Manual Exposure |
|
Focus Mode |
Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
|
Area Exposure / Focus |
Support |
|
Defog |
Support |
|
Image Stabilization |
Support |
|
Day/Night Switch |
Automatic, manual, timing, alarm trigger |
|
3D Noise Reduction |
Support |
|
Picture Overlay Switch |
Support BMP 24-bit image overlay, customizable area |
|
Region of Interest |
Support three streams and four fixed areas |
|
Network |
|
|
Storage Function |
Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support) |
|
Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
|
Interface Protocol |
ONVIF(PROFILE S,PROFILE G) |
|
PTZ |
|
|
Pan Range |
360° endless |
|
Pan Speed |
0.1°~120° /s |
|
Tilt Range |
-18°~90° |
|
Tilt Speed |
0.1°~120°/s |
|
Number of Preset |
255 |
|
Patrol |
6 patrols, up to 18 presets per patrol |
|
Pattern |
4 , with the total recording time not less than 10 mins |
|
Power loss recovery |
Support |
|
Infrared |
|
|
IR distance |
Up to 120m |
|
IR intensity |
Automatically adjusted, depending on the zoom ratio |
|
Port |
|
|
Audio I/O |
1 input,1 output(optical) |
|
Alarm I/O |
1 input,1 output(optical) |
|
General |
|
|
Power |
DC12V 3A, PoE(803.at) |
|
Working temperature |
-40℃ -60℃ |
|
Humidity |
90% or less |
|
Protection level |
Ip66, TVS 4000V Lightning protection, surge protection |
|
Mount option |
Wall Mounting, Ceiling Mounting |
|
Weight |
3.5kg |
