Product details

Description

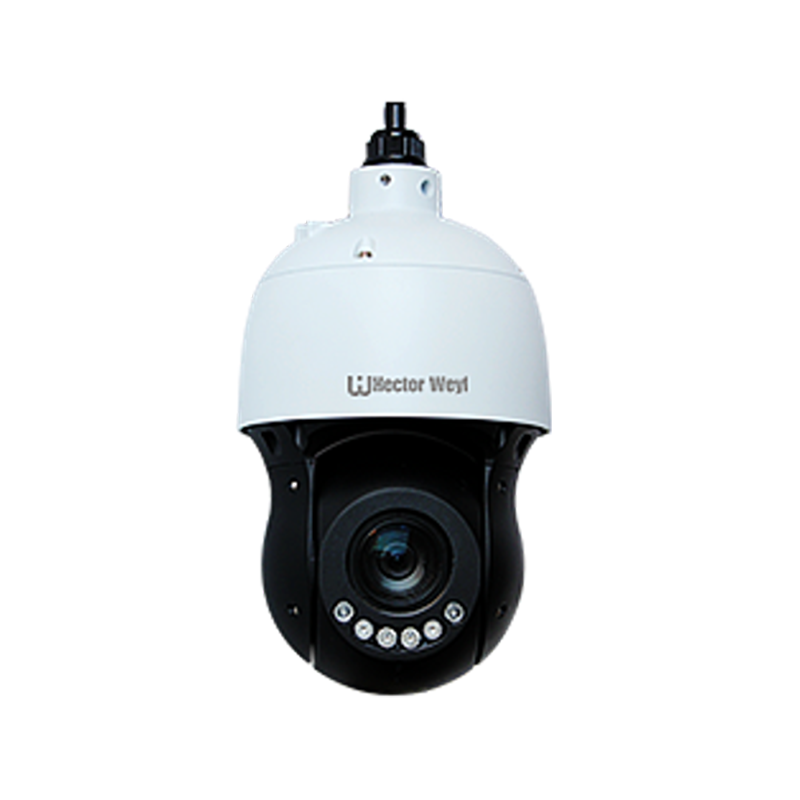

HW-PTZ40233-H 2MP 33x Optical Zoom StarVu Network PTZ Camera

Hector Weyl introduces IntelliSight, a suite of AI-powered products and solutions featuring proprietary AI chips and deep learning algorithms. This series specializes in high-precision identification of individuals and vehicles, allowing for swift responses to specific targets. Leveraging Hector Weyl's cutting-edge technology, IntelliSight delivers smart, straightforward, and comprehensive offerings to meet a variety of needs.
  • 1/2.8” 2Megapixel StarVu CMOS.
  • 5-130mm,26x Optical Zoom
  • Smart Detection:Intrusion,Tripwire,Face Detection(optional)
  • StarVu technology
  • AMD4.0(Active Motion Detection)
  • IR distance up to 120 m
  • IP66
  • TVS 6000 V lightning proof

Camera

Image Sensor

1/2.8" progressive scan 2MP CMOS

Min. Illumination

Color: 0.001 Lux @(F1.5, AGC ON);Black: 0.0005 Lux @(F1.5, AGC ON)

Shutter Time

1/25~1/100,000 s

Automatic Aperture

DC

Day& Night

ICR

Digital Zoom

16x

Lens

Focal Length

5.5-180mm,33x Optical Zoom

Aperture Range

F1.5-F4.0



Field of View

H: 60.5-2.3°Wide - Tele

V: 35.1-1.3°Wide - Tele

Working Distance

100mm-1000mm Wide - Tele

Compression Standard

Video Compression

H.265 / H.264 / MJPEG

H.265 encoding type

Main Profile

H.264 encoding type

Base Line Profile / Main Profile / High Profile

Video Bitrate

32 Kbps~16Mbps

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM



Audio Bitrate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-

64Kbps(AAC)






Main Stream Resolution

50Hz:25fps(1920×1080)50fps(1920×1080)25fps(1280×960)

25fps(1280×720)

60Hz:30fps(1920×1080)60fps(1920×1080)30fps(1280×960)

30fps(1280×720)



Sub Stream 1

50Hz:25fps(704×576)25fps(352×288);

60Hz:30fps(704×480)30fps(352×240)



Sub Stream 2

50Hz:25fps(1920×1080)25fps(1280×960)25fps(1280×720);

60Hz:30fps(1920×1080)30fps(1280×960)30fps(1280×720)



Image Setting

Corridor mode, saturation, brightness, contrast and sharpness can be adjusted by

client or browser

Backlight Compensation

Support

Exposure Mode

Automatic exposure/aperture priority/shutter priority/manual exposure

Focus Control

Auto focus/one-time focus/manual focus

Area Exposure/Focus

Support

Defog

Support

EIS

Support

Day &Night

Auto(ICR) / Color / B/W

3D Noise Reduction

Support

Image overlay

Support BMP 24 bit image overlay, optional region

ROI

ROI supports one fixed region for each three-bit stream

Network Function



Network Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS,

SMB/ CIFS)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF(PROFILE S,PROFILE G) ,GB28181-2016,OBCP

PTZ

Pan Range

360° endless

Pan Speed

0.1°~120° /s

Tilt Range

-18°~90°

Tilt Speed

0.1°~120°/s

Number of Preset

255

Patrol

6 patrols, up to 18 presets per patrol

Pattern

4 , with the total recording time not less than 10 mins

Power loss recovery

Support

Infrared

IR distance

Up to 120m

IR intensity

Automatically adjusted, depending on the zoom ratio

Port

Audio I/O

1 input,1 output(optical)

Alarm I/O

1 input,1 output(optical)

General

Power

DC12V 3A, PoE(803.at)

Working temperature

-40 -60

Humidity

90% or less

Protection level

Ip66, TVS 4000V Lightning protection, surge protection

FAQs

Please read our FAQs page to find out more.

Q: What are the main features of Hector Weyl's surveillance cameras?

A: Our surveillance cameras offer high-resolution video capture,night vision capabilities,and advanced motion detection. They are designed for 24/7 operationand are equipped with weather-resistant housing to ensure reliability in various environments.

Q: How do I set up and configure the NVR for my surveillance system?

A: Setting up our NVR is straightforward. Connect the NVR to your network, power it on, and use the provided software to add your cameras.Configure the recording settings, motion detection, and notifications according to your preferences. For detailed steps,refer to the user manual

Q: What is the range of PTZ cameras offered by Hector Weyl?

A: We offer a variety of PTZ cameras with different features such as outdoor and indoor models, varying degrees of zoom, and different monitoring angles. Our PTZ cameras support remote control for pan,tilt,and zoom operations,allowing for flexible and comprehensive surveillance coverage.

Q: How can I troubleshoot common issues with my surveillance system?

A: Common issues can include problems with power supply, incorrect cabling, or software configuration. Ensure that all connections are secure and that the power supply is appropriate for your system.Check for any physical damage to cables or components. If you're facing software-related issues, try resetting the device or updating the firmware. For more specific guidance,consult our troubleshooting guide.

Q: What kind of storage solutions does Hector Weyl recommend for NVR systems?

A: We recommend using surveillance-grade hard drives designed for 24/7 operation, as they can handle the continuous read and write cycles required for recording surveillance footage. Higher capacity drives are suggested for extended recording periods and to store more high-definition video.

Q: How can I ensure the security of my surveillance data?

A: To secure your surveillance data, we recommend using encrypted storage, regularly updating your system's firmware, and setting strong passwords for system access. Additionally,ensure that your NVR and cameras are protected from unauthorized physical access.

Didn’t find your answer?

Don't hestitate to contact us
