HW-PCAD-156 Pole Mount Bracket

Name: HW-PCAD-156 Pole Mount Bracket
Brand: Hectorweyl
SKU: HW-PCAD-156
Price: 27.00 USD
Availability: InStock

$27.00

Product variants

Need help?

Pairs well with

Not Sure What to Choose? Start with the Right Series.

HW-PCAD-156 Pole Mount Bracket

$27.00

Product details

Description

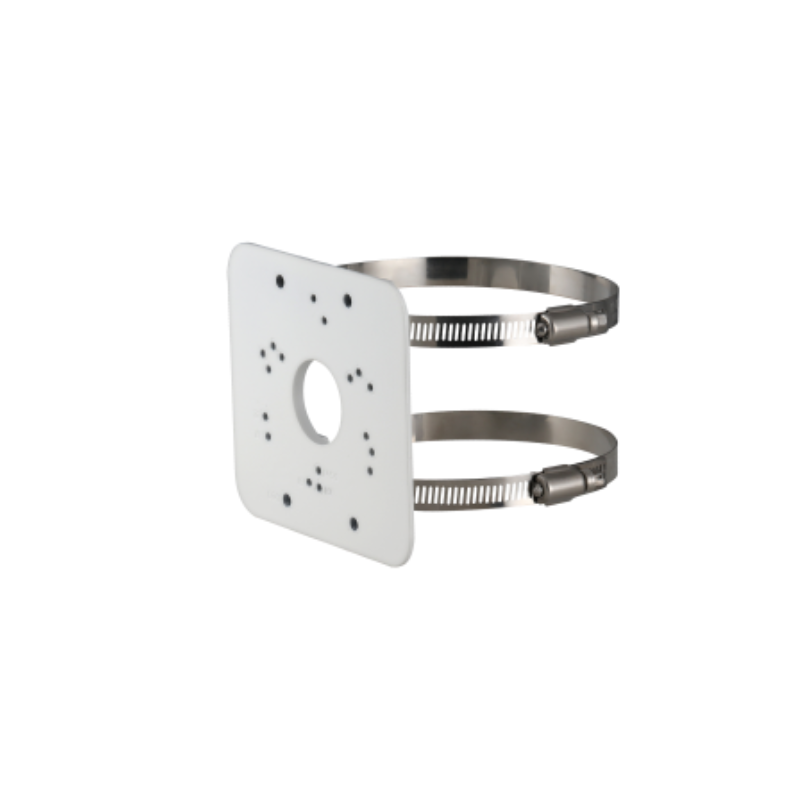

HW-PCAD-156 Pole Mount Bracket Overview

> Made from aluminum alloy and SUS 304.
> Suitable for a variety of cameras and is elegant.
> Designed for multiple types of poles that are 80 mm-150 mm wide.

Structure
Casing Material	Aluminum alloy; Hoop: SUS304
Product Dimensions	125.6 mm × 114.0 mm × 20.0 mm (4.94" × 4.49" × 0.79") (L × W × H)
Appearance Color	White
Net Weight	0.26 kg (0.57 lb)
Gross Weight	0.36 kg (0.79 lb)
Load bearing	3.0 kg (6.61 lb)
Installation	Pole mount
Pole Diameter	Φ80 mm–150 mm (Φ3.15"–5.91")
Packaging Dimensions	146.0 mm × 65.0 mm × 147.0 mm (5.75" × 2.56" × 5.79") (L × W × H)

Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	10%–90% (RH)

Download

HW-PCAD-156

Network Cameras Product Manual

This document details the fucntions of the product and its configuration. Please read the
content carefufully before using the product and keep this document safely for future reference

Click to Download
